Our threaded windsock pivot arms are a breeze to install. Simply thread the frame onto a threaded pole, attach your windsock and you're done. See the installtion tab below for details.
Windsock pivot arms are made of 304 stainless steel and and a fully enclosed and lubricated dual ball bearing assembly. All frames allow for 360 degree rotation and are engineered to provide decades of service life in any environment
Pivot arms are normally shipped the next business day. Shipping is normally an additional 5 business days within the US, depending on your location.
Rush options are available. Contact us for details
Often clients mistake low prices with good value. When comparing pivot arms, it is important to keep in mind the cost of constantly changing a worn out pivot arm or windsock.
Labor costs + Lift/ Equipment Costs + HSE compliance issues with a worn out pivot arm + New low value pivot arm=
Much more expensive than getting a longer lasting, quality pivot arm in the first place
Built for strength, responsiveness and durability, The Custom Windsock Co’s heavy duty windsock pivot arm are designed for industrial and safety applications where wind sensitivity and reliability is of upmost importance
Manufactured entirely from 304 stainless steel, including all nuts, bolts, and washers, the windsock pivot arms offer complete corrosion resistance and are engineered to perform in harsh environments such as airfields, refineries, construction sites, and coastal locations.
Key Features:
304 Stainless Steel Construction – All components, including hardware, are corrosion-resistant for a long, maintenance-free service life.
Dual Ball Bearing System – Fully enclosed, waterproof, and pre-lubricated bearings ensure smooth, consistent rotation in all weather conditions.
Easy Installation – The frame includes a ¾" NPT male thread stub, compatible with standard NPT poles or couplers.
Ideal for airports, helipads, industrial facilities, and agricultural sites, these heavy-duty windsock pivot arms deliver unmatched durability and performance — ensuring your windsock remains accurate and operational year-round.
So you need a windsock..but now, what size?
Windsock size is often dictated by your viewing distance and how the windsock will be mounted. Of course, if you already have a frame, your windsock diameter will be set and you only need to choose a length that worlds for you. See our Visibility of Windsocks Guide below for more information
It can get confusing sometimes on how windsocks are measured. The standard is always to measure windsocks diameter and length and present it as: diameter" x length". See the below infographic guide on how to measure a windsock and determine the diameter
If you have a double hoop or extended hoop frame, you should ensure the replacement windsock you purchase will fit over both the outer and inner hoop of the frame. Every frame manufacturer has a different standard and thus some measuring is required to ensure that your replacement windsock will fit onto your frame. Your two options are:
2. If you do have an existing windsock that fits your frame: Measure diameter of the inlet mouth, the length of the windsock as well as the diameter of the outlet mouth. See our guide above on how to measure a windsock.

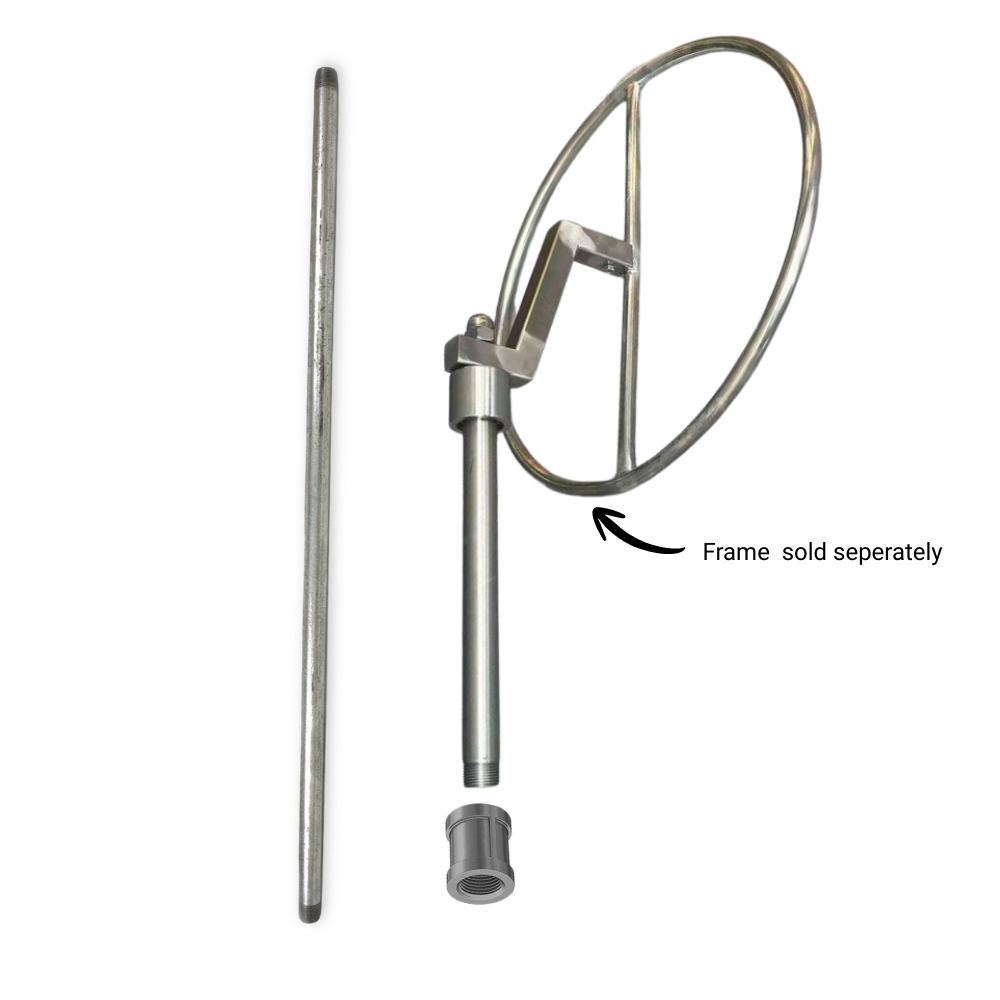

Step 1) Thread the windsock frame onto the pole adapter
Step 2) Mount the adapter onto a 2 3/8" OD pole (a very common pole size that is commonly used for chain link fencing and other applications. The pole can also be called 2" Sch. 40, which then has a 2 3/8" OD)
Step 3) Mark the hole location on either side of the pole and then remove the adapter. Drill through the pole with an appropriate bit. Tip: we find it's easier to mark the holes on both sides of the pole and drill through each side of the pole independently
Step 4) Put the adapter and frame back onto the pole and slide the bolt through the assembly and tie the nut
Step 1) Thread the windsock frame onto the coupler
Step 2) Thread the other side of the coupler onto the pole
Note on all Non USA orders: All duties and taxes that may be incurred upon import are the customer's responsibility.
Note: Any of the above shipping timings and costs can be changed at any time at the sole discretion of the Custom Windsock Co.
At the Custom Windsock Company, we want you to be satisfied when you receive your products. All custom products are tailor made to your specifications but because all the finishing and sewing is either done by hand or by a person with a sewing machine, sometimes there is potential for human error, however minimal. Under normal circumstances, our quality control department would pick up on it but sometimes things slip through and the order is dispatched. You might be wondering, what do I do incase of a manufacturing defect?
If our products are faulty in any way, you can return them within 14 days of receipt. You can contact our customer service department by calling 1-833-786-1035 or emailing info@custom-windsocks.com. Let us know your name, order number and concern and we will respond quickly to resolve your issues. We ask you provide a digital image of the fault in your product as well as a clear description of the problem.
In most cases, we will be able to resolve your issue via email. If the fault cannot be verified, you may need to return your product to us for inspection.
With regards to Stock products (non printed) and Hardware
All returns must be approved prior to attempting a return. Please email us at info@custom-windsocks.com and state the reason for return to obtain approval for a return. If a return is received that did not obtain prior approval will not be refunded.
We do not accept returns for the Telescopic Windsock Pole. For all other stock products and hardware see below:
In regards to all printed products (custom printed or printed without customization)
Our friendly and knowledgable support team is here to answer any of questions.
Feel free to contact us for a quote on bulk orders by completing the fields and including as much information as possible for us to quote you appropriately. Let us know the address and country to which you want your windsocks shipped as well as an approximate time frame during which you wish to have the windsocks in hand.
